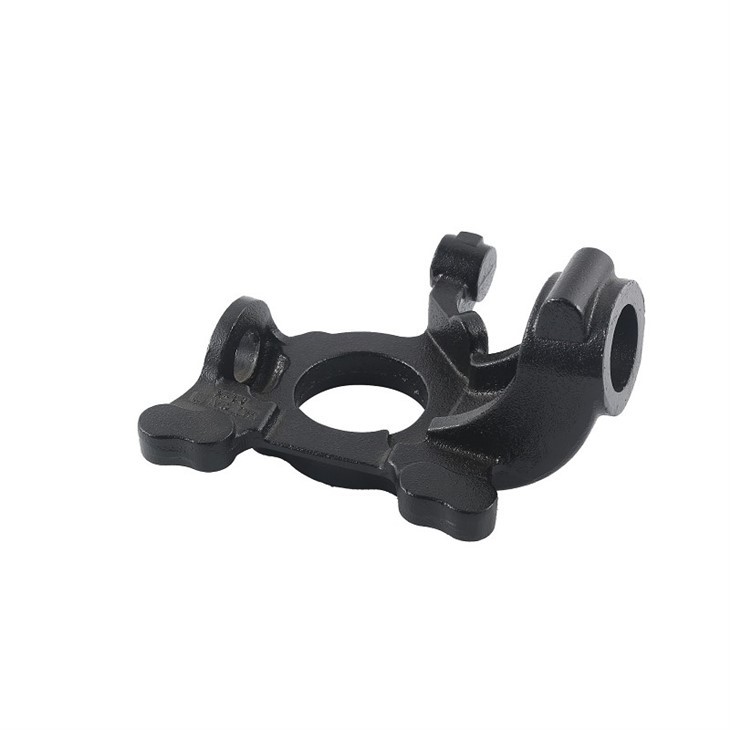

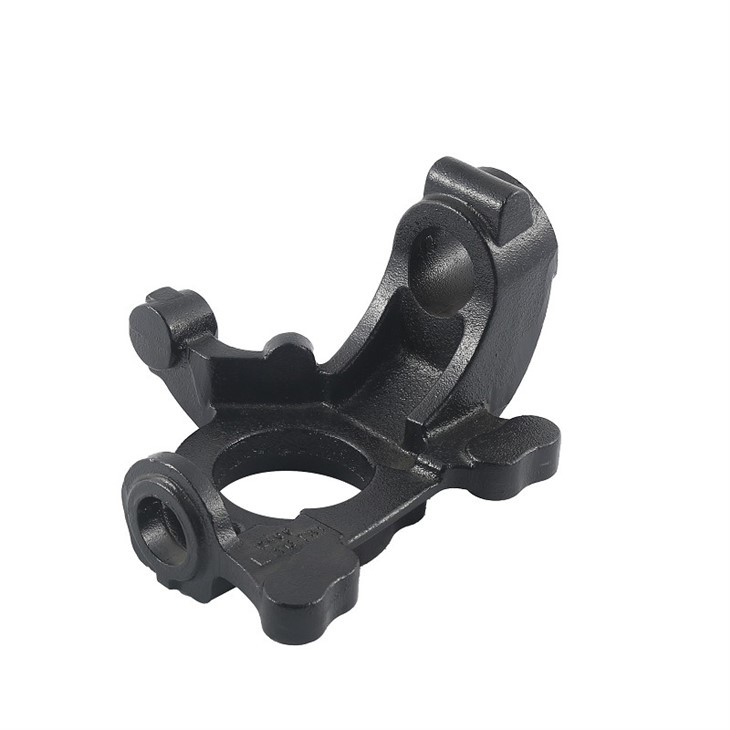

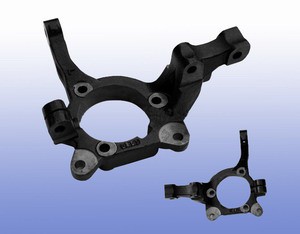

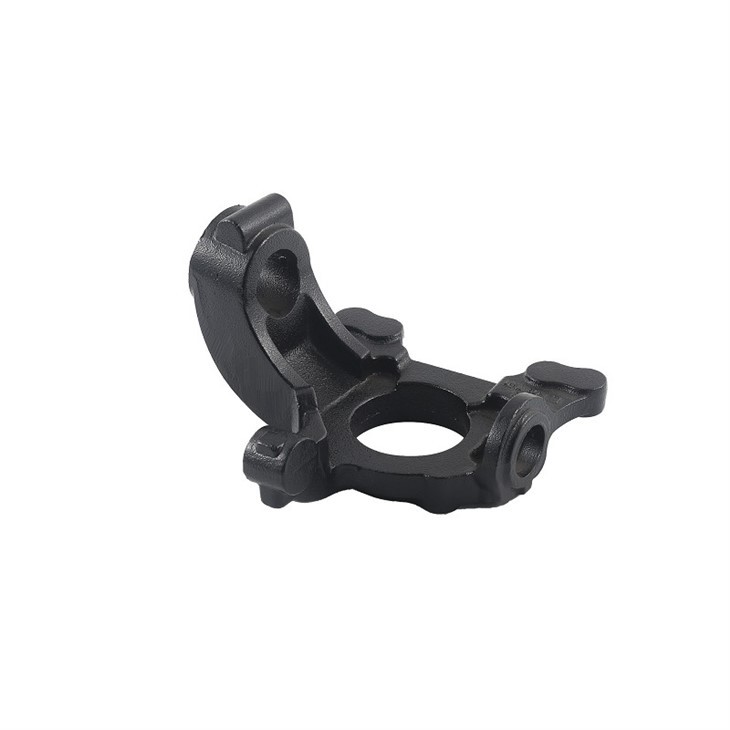

Nodular Cast Iron Knuckle
Application on
A steering knuckle is a stub axle that is used as a connection point between the tie rod and wheel. Steering knuckles also connect the lower and upper ball joints in A frame vehicle suspensions. Disk-brake systems use steering knuckles as a brake-caliper mount.
Material Grades
Ductile Cast Iron, Nodular Cast Iron, Spheroidal Graphite Iron, Spherulitic Graphite Cast Iron, SG Iron
|
Country |
Standard |
Equivalent Grades of Ductile iron (SG Iron, Nodular Graphite Iron) |
||||||
|
ISO |
ISO 1083 |
400-15 |
450-10 |
500-7 |
600-3 |
700-2 |
800-2 |
900-2 |
|
400-18 |
||||||||
|
China |
GB 1348 |
QT400-18 |
QT450-10 |
QT500-7 |
QT600-3 |
QT700-2 |
QT800-2 |
QT900-2 |
|
USA |
ASTM A536 |
60-40-18 |
60-42-10 |
70-50-05 |
80-55-06 |
100-70-03 |
120-90-02 |
- |
|
65-45-12 |
80-60-03 |
|||||||
|
Germany |
DIN 1693 |
GGG40 |
- |
GGG50 |
GGG60 |
GGG70 |
GGG80 |
- |
|
Austria |
||||||||
|
European |
EN 1563 |
EN-GJS-400-15 |
EN-GJS-450-10 |
EN-GJS-500-7 |
EN-GJS-600-3 |
EN-GJS-700-2 |
EN-GJS-800-2 |
EN-GJS-900-2 |
|
EN-GJS-400-18 |
||||||||
|
Japan |
JIS G5502 |
FCD400 |
FCD450 |
FCD500 |
FCD600 |
FCD700 |
FCD800 |
- |
|
Italy |
UNI 4544 |
GS370-17 |
GS400-12 |
GS500-7 |
GS600-2 |
GS700-2 |
GS800-2 |
- |
|
France |
NF A32-201 |
FGS370-17 |
FGS400-12 |
FGS500-7 |
FGS600-2 |
FGS700-2 |
FGS800-2 |
- |
|
UK |
BS 2789 |
400/17 |
420/12 |
500/7 |
600/7 |
700/2 |
800/2 |
900/2 |
|
India |
IS 1865 |
SG370/17 |
SG400/12 |
SG500/7 |
SG600/3 |
SG700/2 |
SG800/2 |
- |
|
Spain |
UNF |
FGE38-17 |
FGE42-12 |
FGE50-7 |
FGE60-2 |
FGE70-2 |
FGE80-2 |
- |
|
Belgium |
NBN 830-02 |
FNG38-17 |
FNG42-12 |
FNG50-7 |
FNG60-2 |
FNG70-2 |
FNG80-2 |
- |
|
Australia |
AS 1831 |
300-17 |
- |
500-7 |
600-3 |
700-2 |
800-2 |
- |
|
400-12 |
||||||||
|
Sweden |
SS 14 07 |
0717-02 |
- |
0727-02 |
0732-03 |
0737-01 |
0864-03 |
- |
|
Norway |
NS11 301 |
SJK-400.3 |
- |
SJK-500 |
SJK-600 |
SJK-700 |
SJK-800 |
|
|
SJK-400 |
||||||||
Production Process
Sand Casting, Automatic Molding, Machine Molding, Shell Molding, Green Sand Casting.
Supplier
Ductile Iron Foundry in China, S.G. Iron Casting Manufacturer, Iron Foundry, China Foundry
Richer Foundry is producing cast iron and cast steel castings by various sand casting and precision casting processes, including Automatic Molding Line, Resin Sand Molding, Shell Molding, Manual Green Sand Cast Molding, Shell Molding
We have complete quality inspection devices for Mechanical Testing and Chemical Analysis, including tensile strength, hardness, metallographic inspection, hardness, spectrometer, ultrasonic testing. ISO 9001 Certified. We can issue quality reports for all inspections.
